TANK MIXING EDUCTOR NOZZLES QATAR

Synergy Spray Systems is a top-tier manufacturer and exporter of tank mixing eductors and eductor nozzles across Qatar, UAE, Saudi Arabia, Kuwait, Iran, and Iraq. Our mixing nozzles deliver efficient, uniform mixing for industrial tanks without the use of moving parts or mechanical agitators.

What is a Tank Mixing Eductor Nozzle?

A tank mixing eductor uses the Venturi principle to draw fluid from the tank and mix it with incoming fluid, creating a circulating flow pattern.

Homogeneous fluid blending

Stratification prevention

Effective chemical and liquid mixing

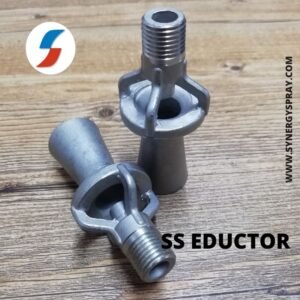

metal eductor manufacturer in india chennai

Materials for Nozzle Tank Systems

Our liquid mixing eductor nozzles are built using premium materials suited for Qatar’s industrial needs

PVC (Polyvinyl Chloride): Affordable and chemically resistant

PVDF (Polyvinylidene Fluoride): Excellent for high-temperature acids

Nylon: Lightweight and abrasion-resistant

Stainless Steel (304/316): Ideal for corrosive fluids, solvents, and high-pressure use

Why Use Tank Eductors Instead of Mechanical Mixers?


      Feature
      Tank Eductors
      Mechanical Agitators

      Moving Parts
      None
      Yes

      Maintenance
      Minimal
      Regular servicing required

      Energy Consumption
      Low (uses pump only)
      Higher due to motor & blades

      Mixing Uniformity
      Excellent
      Depends on design & placement

      Solids Handling
      Yes (large openings)
      Limited (risk of blade clogging)

      Cost
      Lower
      Higher upfront & maintenance

Feature	Tank Eductors	Mechanical Agitators
Moving Parts	None	Yes
Maintenance	Minimal	Regular servicing required
Energy Consumption	Low (uses pump only)	Higher due to motor & blades
Mixing Uniformity	Excellent	Depends on design & placement
Solids Handling	Yes (large openings)	Limited (risk of blade clogging)
Cost	Lower	Higher upfront & maintenance

Applications of Tank Mixing Eductors

Chemical & Pharmaceutical

Blending solvents, acids, and bases

Homogenizing multi-phase fluids

Preventing settling of suspended solids

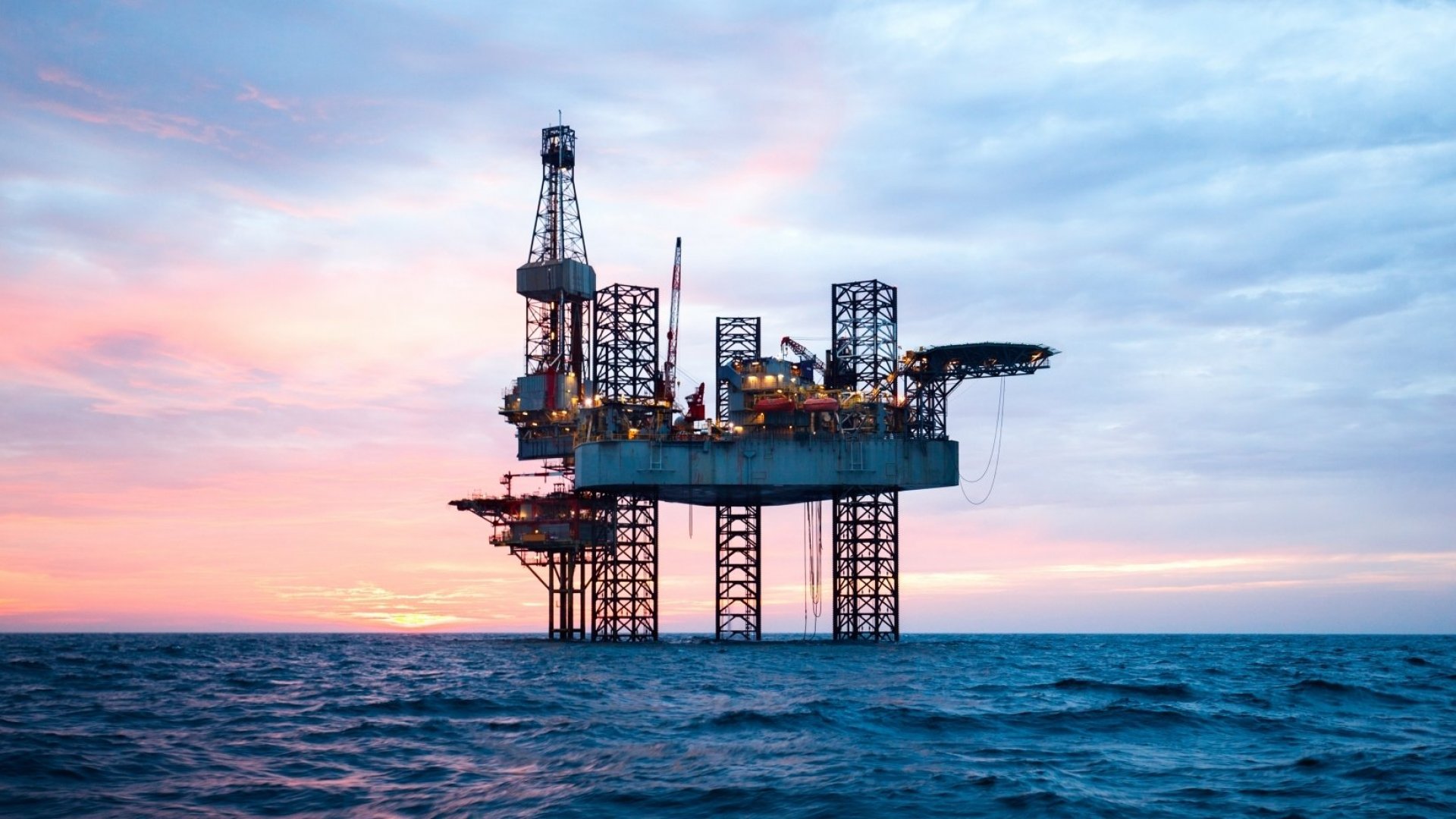

Oil & Gas

Additive injection in sludge tanks

Bio-diesel and ethanol fuel blending

Surface Finishing

Agitation in electroplating, anodizing, and stripping tanks

Uniform chemical distribution across metal surfaces

Paint & Coating

Mix paint solutions to prevent pigment separation

Circulation in spray booth holding tanks

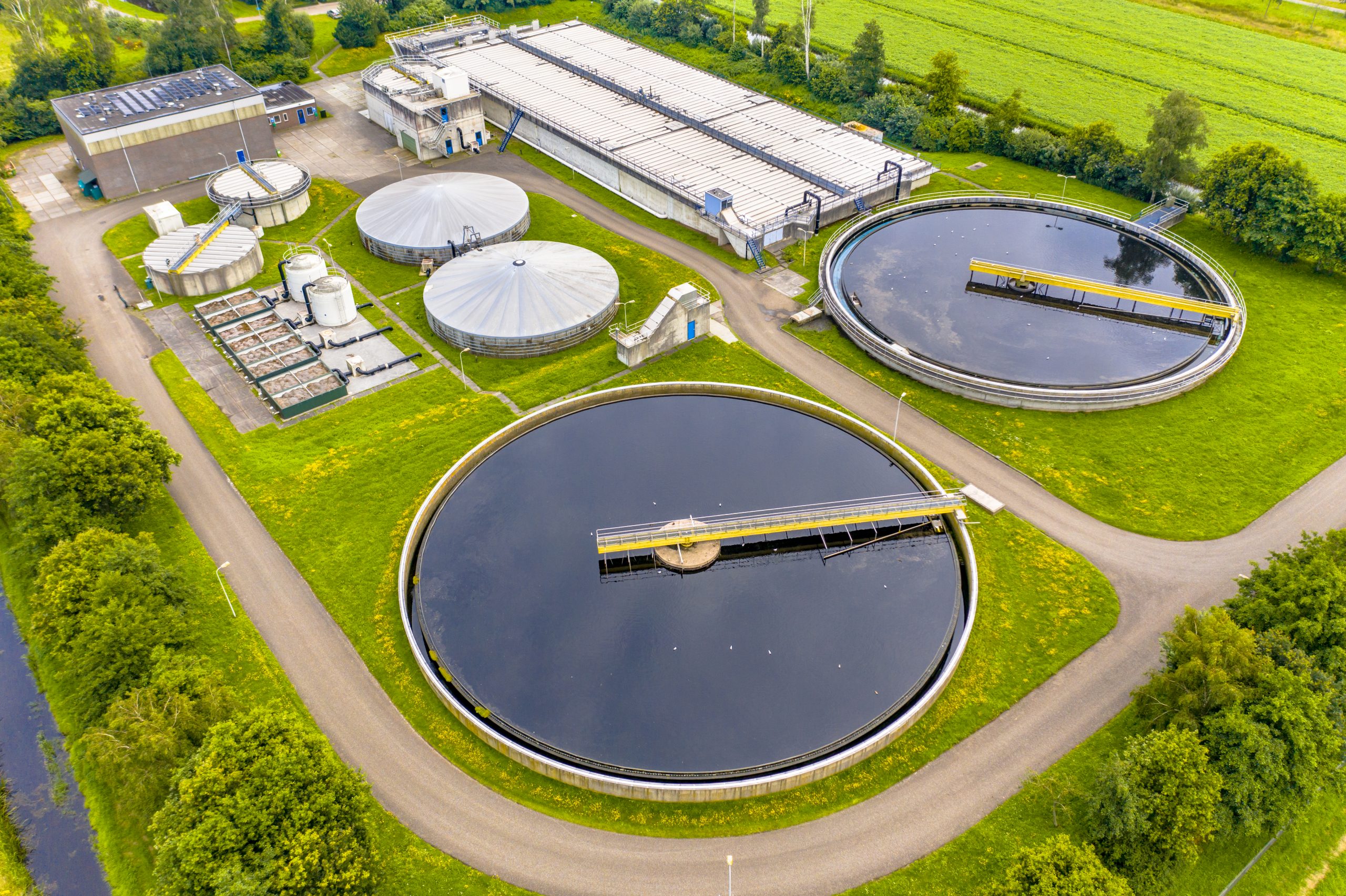

Water & Wastewater

Sludge resuspension

Enhancing flocculation and chemical reactions

Benefits of Tank Mixing Eductor Nozzles in Qatar

No moving parts – minimal wear, zero maintenance

Efficient fluid circulation for uniform chemical composition

Reduces tank cleaning time by eliminating sludge build-up

Improves mixing rates and heat transfer

Compact design – fits into tanks of any size

Easy installation – in-tank mounting with adjustable flow angles

Eliminates need for compressed air, avoiding contamination

Why Choose Synergy Spray Systems?

Leading metal eductor manufacturer in India (Chennai)

End-to-end support from design to commissioning

Large in-stock inventory for fast shipment

Engineering customization for unique process needs

Competitive pricing for international customers

FAQ

What is turnover rate for tank mixing liquid eductors.

Turnover rate is the recirculation capacity of the eductors. Quantity of liquids recirculated by the eductors compared to the size of the tank. Effective turnover rate can be determined by the pH content of the liquid, operating temperature, viscoscity and solid/gas dispersion

What is the effective turnover rate for tank eductors for various materials?

• Plating and rinsing tanks: 10 to 30 turnovers per hour

• Cleaning tanks: at least 10 turnovers per hour

• Heavily soiled tanks: up to 20 turnovers per hour

• Critical cleaning tanks: > 20 turnovers per hour

How to determine the tank eductors capacity.

Eductor capacity can be determined based on following factors

a. Number of eductors

b. Size of the tank. (Rectangular or cylindrical (Horizontal or Vertical)

c. Liquid/gas properties.

What are the available connection size:

Eductors are available from 3/8th inch to 1.5" inch thread connection size.
